Lamination & Reflow Machine

As an MMT Company, Glebar is proud to showcase our sister companies’ robust line of catheter lamination and reflow solutions. Designed to support your catheter production, our solutions help you increase overall production through consistency and increased thruput.

These machines are available with heads up to 12″ in standard frame size but can be customized to your desired size and chamber. Customization of machines is available with auto load, counterweight, security features (light door), loading elevators, etc.

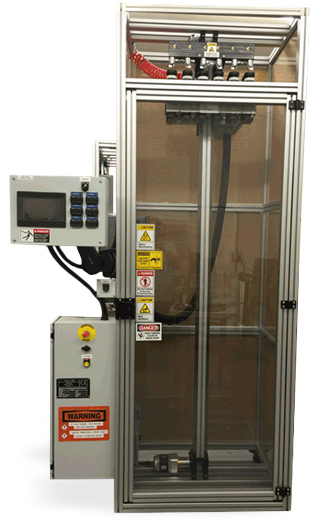

Reflow Chamber

reflow machine, Lamination Reflow

The CT Reflow Chamber machine is Interface’s standard machine that delivers a strictly controlled and conventional heated chamber while navigating down tubing at a precise and regulated speed. This machine provides high repeatable and uniform laminations of medium to long-length catheter shafts.

Reflow Clam Shell

reflow machine, Lamination Reflow

The CT Reflow Clam machine differs from the CT Reflow Chamber machine because of its ability to be programmed to skip over various parts of a catheter assembly, therefore removing heat from designated parts of the catheter.

Reflow Roller

reflow machine, Lamination Reflow

The CATH-TECH reflow roller boasts eight (8) chambers that continuously feed the product, and enable a quick transition between loads by the operator. This easy to control, compact machine is not suitable for micro wall systems less than two thousandths of an inch.

Other Lamination Technology

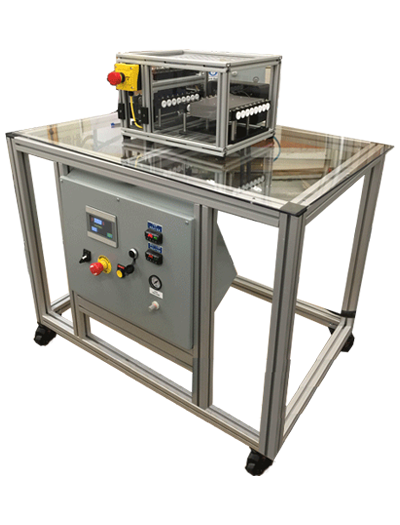

Quad Catheter Laminator

reflow machine, Lamination Reflow

Our Quad Catheter Laminator machine uses recirculated hot air to shrink thermoplastic tubing down to a minimal diameter to produce catheters. The programming is flexible to allow new products to be made with the same machine.
