CT Reflow Chamber

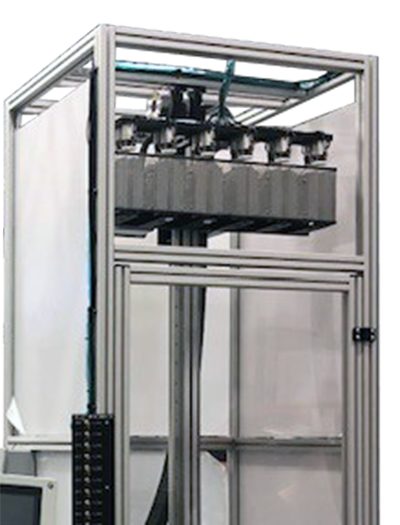

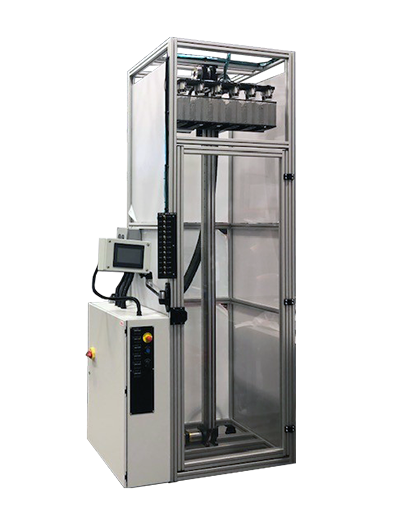

The CT Reflow Chamber is R&D Engineering’s standard machine that delivers strictly controlled and conventional heated chamber while navigating down tubing at a precise and regulated speed. This machine provides high repeatable and uniform laminations of medium to long-length catheter shafts.

Description

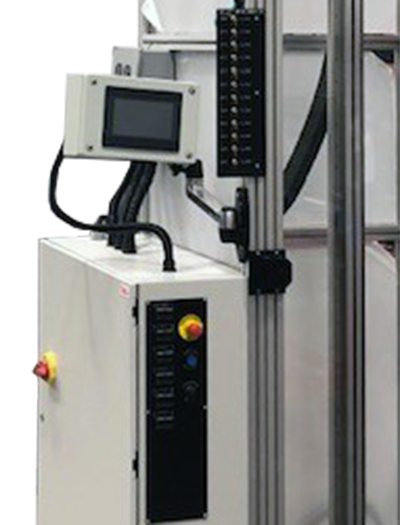

The CT Reflow Chamber has process repeatability, high yield, and uniformity to further reinforce the use of tubing centering guides to ensure accurate catheter centering within the heat zone. Traverse speed and length settings are entered via touch-screen HMI and a motion controller ensures precision and repeatability. This system is capable of multiple lengths and speed transitions within a single cycle and within the heat zone, and independent temperature control of each thermal nozzle. The Cath-Tech Reflow prevents the longitudinal elongation and uneven recovery problems associated with oven use.

Specifications

  • Chamber Options:
    • 8 or 10 Chambers
  • Machine Height Options:
    • 89″, 100″, 108″, 120″, 144″
  • No special ventilation needed
  • Aluminum bronze, according to custom spec.
  • Aluminum extruded form

Options

  • High Temp Package
  • Loading Elevator
  • Light Curtain
  • Safety Pull Cord
  • Door Interlock
  • Replacement PTFE
  • Replacement Chambers:
    • .200 – .375 Dia
    • .187 Dia
    • .376 – .500 Dia
    • .125 Dia
