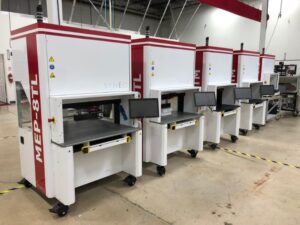

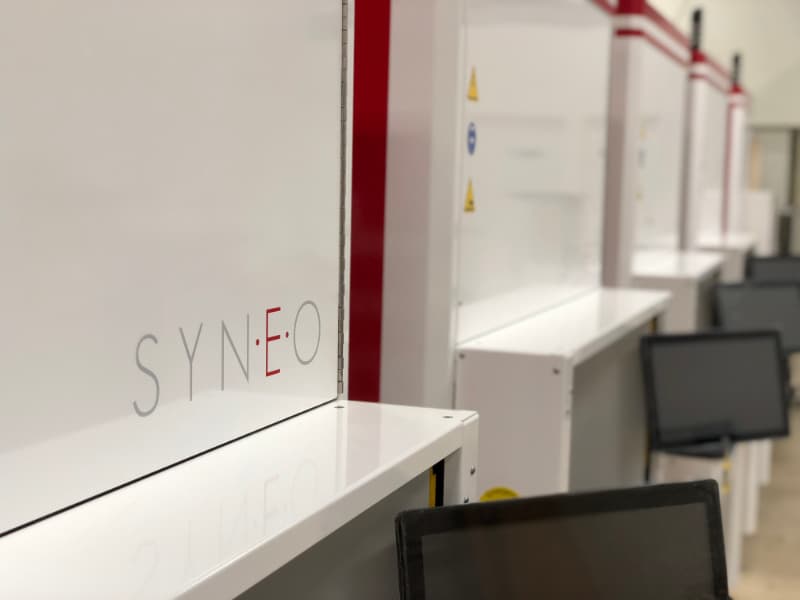

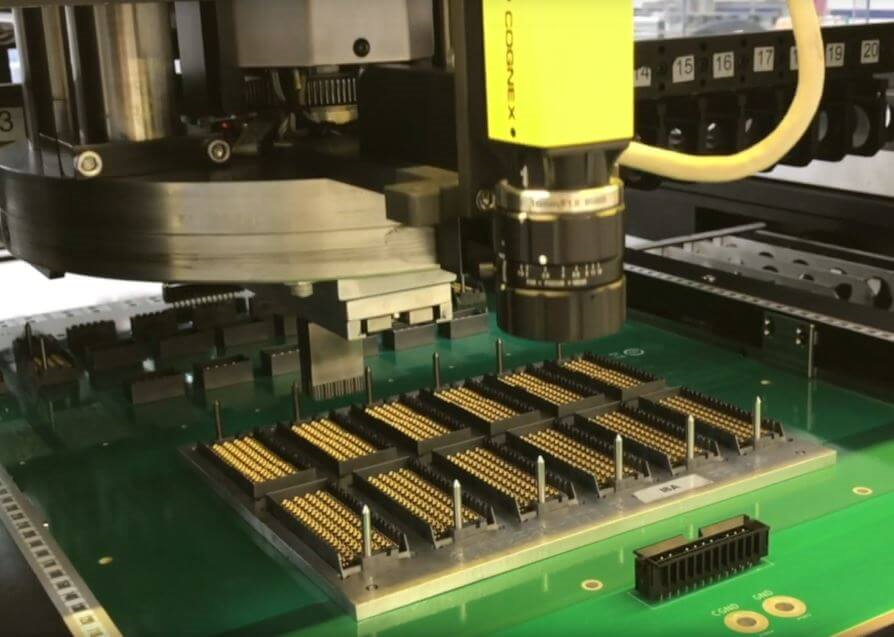

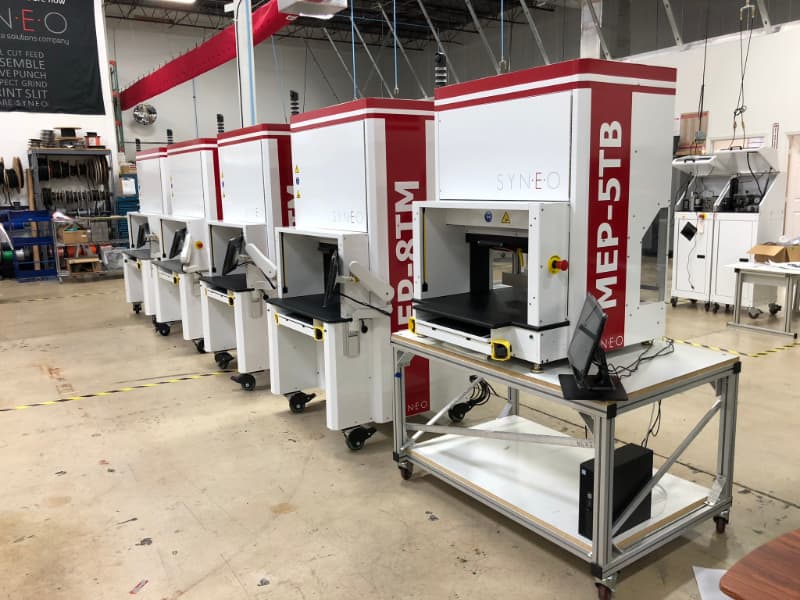

SYNEO offers a tiered range of semi-automatic and automatic servo-electric connector presses designed to insert compliant pin connectors into printed circuit boards. Each SYNEO Accu-Press Connector Press machine is programmed and operated via a dedicated personal computer (PC), that can be directly programmed or can also utilize a remote programming workstation that supports multi-machine configurations. SYNEO’s high-resolution connector press position feedback (0.001mm true Z-Axis resolution) and force sensing closely monitor press process in real-time, allowing an operator to be immediately aware of a problem such as a bent pin, an oversized plated thru-hole, or an incorrectly positioned connector during the press cycle. Instantaneous feedback for board problems improves resolution in quality assurance, improving yield metrics while reducing operating costs

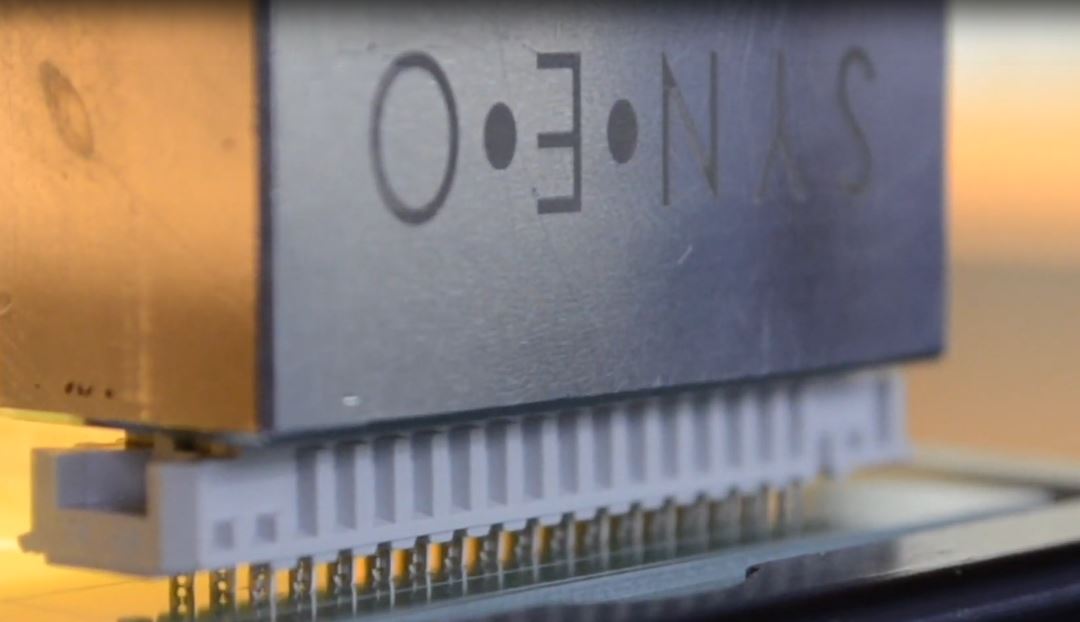

All press tools, electric connector press machines, press profiles, and board programs are stored, so future applications can be easily adapted from existing programs and transferred between machines in multi-machine arrangements. All these functions improve the versatility of the work cell and help prevent future errors by allowing users to utilize previously validated information. SYNEO’s Press-Fit assembly and Press-Fit tooling solutions are configured for Factory 4.0 connectivity and bring an advanced software suite to the end user, allowing any user to manage applications of the past, present, and future.
