Magnum Tipping Machine

Description

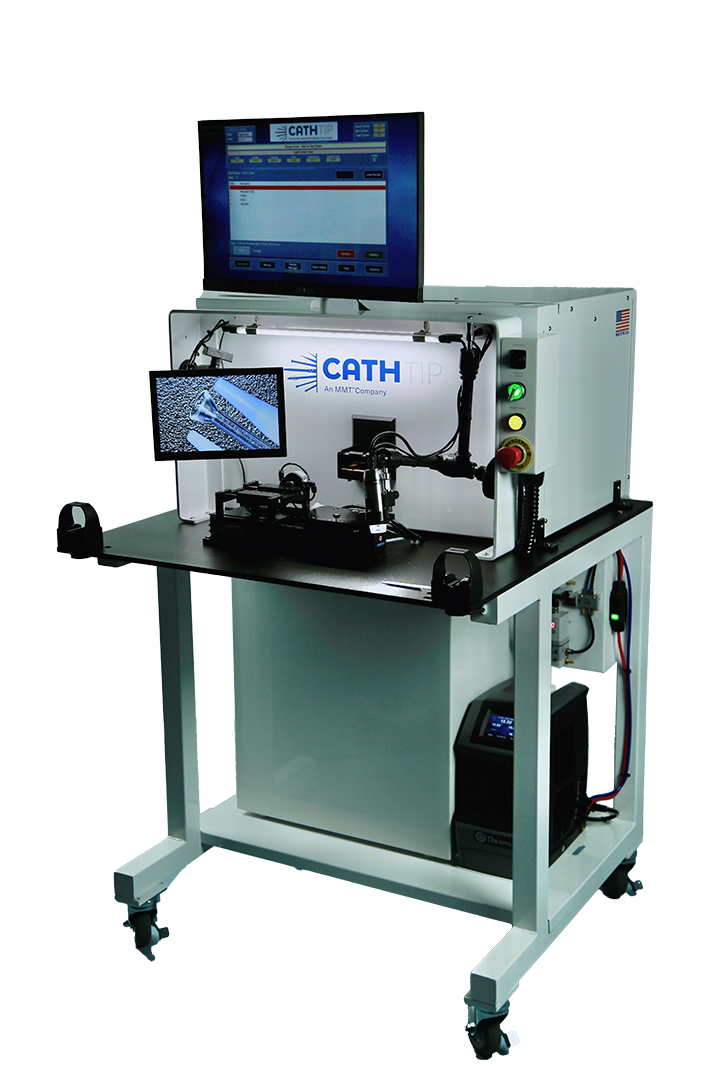

The Magnum provides the most flexible RF architecture on the market, capable of tip forming, flaring and bonding in production or Interface settings. Our state-of-the-art, precision catheter forming systems produce the highest quality parts with speed and consistency. Achieve flashless tips, smooth bonds, and exacting geometry with virtually all thermo-plastic materials.



Produce a wide range of applications – flares, flanges, angular welds, bonds, multi-lumen shape transitions, butt welds, balloon to catheter welds, neck downs, soft-tip fusion, metal-to-tube adhering, sheaths, dilators, radio-opaque, strain relief bonds, swaged metal needle guides, tube-in-tube bonds, etc.

Key Features

  • Flexible for Interface and production environments
  • Tailor-engineered to your specific application
  • Work with extrusion sizes from 1FR to 34+ FR
  • Integrated HD digital microscope (optional)
  • Store up-to 10,000+ recipes
  • Modular “black box” tooling design
  • Generate temperatures up to 650 °F
  • Control temperature, current and force with closed loop architecture
  • Transfer recipes easily across machines via USB drive or network
  • Ability for remote access & troubleshooting

Universal Specs

  • RF Induction: 1 KW @ 450 KHz tube-based
  • Motion: Servo
  • Force Control: Closed-loop
  • Temperature Control: Closed-loop PID temperature & current control
  • Air Actuation: Recipe-controlled proportional regulator
  • Power: 100-240 VAC at 50/60Hz
  • Air: 100 psi max. 5cfm
  • Interface: Touchscreen, keyboard, PC, PLC
  • Dimensions: 30” x 34”x 75”
  • Weight: 325 lb

Safety Features

  • Light curtains (optional)
  • Dual-touch sensors
  • User-Specified alarm
  • 3-color indicator light
  • E-stop
