SG-2060: Electrochemical Burr-Free Surface Grinder

The Tridex SG-2060 Burr-Free Electrochemical CNC Surface Grinder is a faster alternative to traditional surface grinding. By providing burr-free and low force grinds that leave no heat-affected zones it virtually eliminates the need for deburring or other corrective secondary operations. For grinding points on wires or medical needles, the Tridex PGS-100 Point Grinding System can be easily integrated.

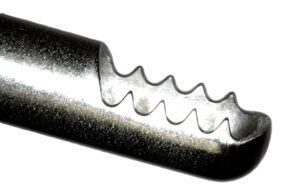

Arthroscopic shaver teeth
Arthroscopic shaver teeth

Key Features

  • Robust stationary table design makes the machine easier to automate and provides more robust machine guarding.
  • Wheel moves in X, Y, and Z axes.
  • Available Index Table Pallet Changer allows the operator to load the next part while grinding is in operation.
  • Increasing productivity, index table can run two Tridex PGS-100 Point Grinders.
  • Easily integrates with automation to increase process efficiency.
  • Standard CNC simple conversational control with color Mitsubishi HMI touchscreen.
  • Standard MPG Handwheel.
  • Meets CE & ISO 13849 safety standards.
  • Heavy duty cast iron weighing 16,000 lbs for superior tolerance and finish.
  • Precise flange mounted electrolytic grinding spindle
  • Stainless steel electrolyte tank sealed against mist and leaks.
  • Feed components are protected from electrolyte.
  • Integration of the Tridex PGS-100 Point Grinding System is simple for grinding points on wire and medical needles.
  • Available with full rotary table (C) axis.

Specifications

  • Axis Travel: X: 24” (600mm); Y: 15.75” (400mm); Z: 8” (200mm)
  • Table Size: 31.5” (800mm) x 13.4” (340mm)
  • Positioning Accuracy: +/- .0001”/4” (0.0025mm/100mm)
  • Repeatability: +/- .00004” (0.001mm)
  • Traverse Speeds: 600”/min (15m/min)
  • High Precision Spindle: Sealed Ceramic Bearings, Direct Coupled
  • Spindle Motor: 7.5HP (5.6KW) Direct Drive AC Spindle Motor – No Drive Belt, 0 – 3,500 RPM
  • Power Supply: 20V DC, 300A Solid State (600A, 1000A Optional)
  • Control: Mitsubishi CNC color screen, Removable MPG Handwheel
  • Electrolyte Supply Tank: 50 Gallon (200 Liter) Sealed Stainless Steel
  • Safety Standards: Meets CE and ISO 13849.1 Safety Standards
  • Machine Weight: 16,000 lbs (7258kg)
  • Footprint: W: 72” (1,830mm) ; D: 85” (2,160mm); H: 88” (2,235mm)
  • Air: 4CFM @ 80PSI
