OD Grinder

The Glebar Advantage

Fully customizable small footprint machine capable of processing high volume components using a precision arbor as a fixture. The machine can be adapted with automation for a complete turnkey solution.

Touchscreen HMI
Automation
Remote Connectivity
Template Tracing Dresser
Safety Enclosure

Introducing the PG-9DOD

  • The PG-9DOD is a compact OD grinding machine designed to handle small components such as hard bushings and rollers. The machine was designed to grind high performance engine components and can be simply adapted to process equally challenging parts where the concentricity specification is critical.
  • Parts can be staged on a precision arbor fixture ready to be loaded into the machine.
  • The PG-9DOD is a compact OD grinding machine designed to handle small components such as hard bushings, bearings, and rollers.
  • An oscillating head adds an additional level of surface and straightness control to the grinding process.

PG-9DOD Highlights

Workhead Assembly and Cast Iron Bed

Workhead Assembly and Cast Iron Bed

Built on a cast iron bed coupled with a high precision twin grip spindle, the PG-9DOD can hold extremely tight concentricity specs. An oscillating head adds an additional level of surface and straightness control to the grinding process. Also, the hydraulically driven arbor attachment provides part control during the plunge grinding operation.

Independent Slides for Quick Setup

Independent Slides for Quick Setup

The system's two independent slides (upper and lower), which control the regulating wheel and the blade that holds the part being ground in place, provide significantly easier set up than competing systems.

Controls and Custom Software

Controls and Custom Software

The control software is entirely developed at Glebar and is fully customizable to address your application and process. The intuitive touch screen interface allows for ease of use and flexibility. The machine software interface was developed to allow an unskilled operator to run many high precision machines simultaneously.

On Machine Wheel Dressing

On Machine Wheel Dressing

Our machine can outperform conventional OD grinders because we can use the full face of the wheel to grind the part. The wheel shape can be controlled finitely using a template tracing work wheel dresser.

Remote Connectivity

Remote Connectivity

Remote connectivity simplifies troubleshooting and maintenance.

Key Features

  • Small footprint
  • High volume
  • High accuracy
  • Customized cycle control
  • Interfacing to automation and robots
  • Interfacing to inspection systems
  • Twin grip spindle

Specifications

  • Work Wheel Power : 7.5 HP (5.5kw) - 15HP (11kw)
  • Work Wheel RPM : 2375 RPM
  • Machine Footprint : 41” (1041mm) x 25” (635mm)
  • Machine Weight : 1800 lbs (820 kg)
  • Wheel Size : 9” x 10.125” (229 x 210 mm)
  • Roundness Achieved : Less than 10 millionths

Accessories

Template Tracing Work Wheel Dresser

Template Tracing Work Wheel Dresser

Uses a formed template to dress shallow shapes into the grinding wheel. An auto dress version of this dresser available.

Mist Collector

Mist Collector

Collects and removes debri and dust from the work area.

Off-machine Wheel Balancing System

Off-machine Wheel Balancing System

Comes with arbor, flange with four weights and stand. Balanced grinding wheels are critical for high precision parts.

Post Process Gauging

Post Process Gauging

Post grinding and cleaning, the data is collected, analyzed and fed back to the machine for automatic size compensation. Measurements are shown on a trend graph on the machine control.

Part Counter

Part Counter

Built specific for the part; integrated into the cell.

Robot Pick & Place

Robot Pick & Place

Automatically picks parts from trays, loads into machine, unloads and places back to parts tray. Fully guarded and interlocked access doors. Robot arm incorporates two grippers for staging the loading and unloading during the grind cycle, reducing idle time.

Three-Stage Recirculating Coolant System

Three-Stage Recirculating Coolant System

30 gallon capacity with two removable settling tanks centrifugal pump & filtration package

Select Components Ground on a Glebar PG-9DOD

Below is a sample of select components Glebar has ground, on this machine, over the years. Please contact us and send us your drawing for a personal consultation.

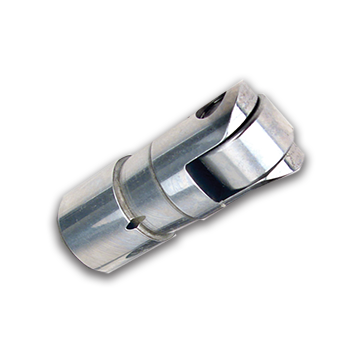

Clipped Pin Nose Roller
