PG-9DHD

Centerless Form Grinder

The Glebar Advantage

A highly controllable machine able to Form grind parts as small as felt pen nibs to 4" diameter fiberglass on the same machine. Robust and small in size, this workhorse is unmatched in productivity.

Touchscreen HMI
Automation
Remote Connectivity
Template Tracing Dresser
Safety Enclosure
Multi-Part Grinding

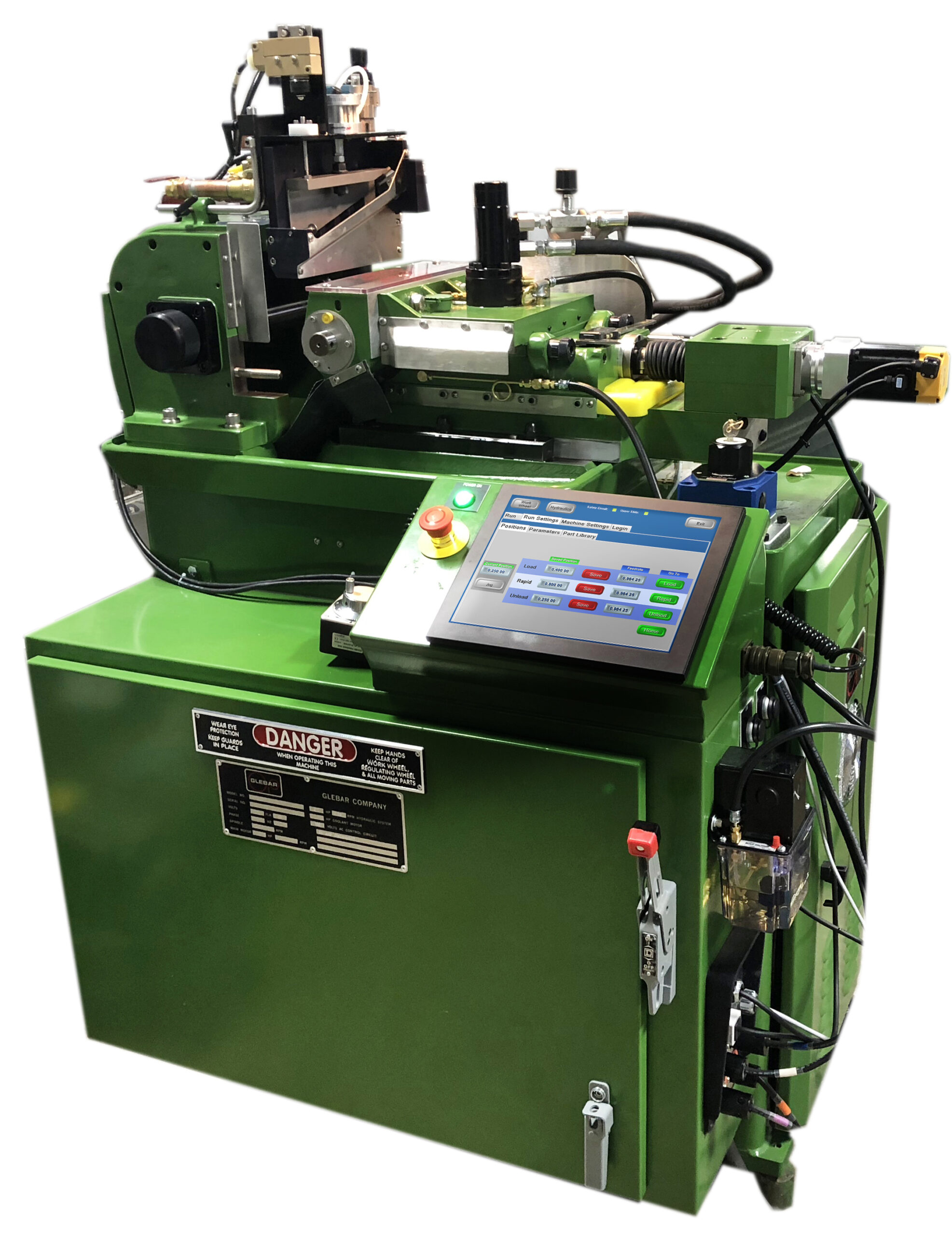

PG-9DHD-Machine-Image

Introducing the PG-9DHD

  • The PG-9DHD Centerless Form Grinder is an adaptation of the Glebar workhorse, the PG-9BHD. Similar in basic functional configuration as the BHD machine, the DHD is a high precision version.
  • With its 10” wheel, this Form grinder is capable of multiple-part-per cycle grinding, also offering slide positions and controllability not achievable for the more basic PLC driven unit.
  • Glebar’s unique Form grinding process can shape any spherical or cylindrical component into unlimited forms on a large variety of materials. This highly productive method of manufacturing surpasses competing methods where cutting tools or back knifes are used. When automated, this machine’s productivity and performance is nearly impossible to surpass.
  • Chances are, that in every household, you will find a component that was ground on a Glebar Form Grinder. Example grinding applications range from basic deodorant balls, golf balls and pen nibs to drumsticks, check valves and fuses.
Glebar has over 60 years of Form grinding experience – having introduced the first compact Form grinder to the market in 1952, our history is firmly rooted in this type of grinding.

PG-9DHD Highlights

10” Wide Work Wheel for Multiple Part Per Cycle Capability

10” Wide Work Wheel for Multiple Part Per Cycle Capability

Since this machine accepts a 10" wide grinding wheel, multiple parts per cycle can be generated in a single infeed motion and with our vast knowledge base of material matching, we can marry the optimum grinding wheel to handle almost any material – from foam to diamonds.

Powerful 15HP Motor and Rigid Spindle for Heavy Grinding

Powerful 15HP Motor and Rigid Spindle for Heavy Grinding

The PG-9DHD can be fitted with a 15HP main spindle motor for heavy grinding of materials such as G10 fiberglass turning cylinders into balls. The spindle is a high precision twin grip setup with cartridge bearings. A stepper driven hard chrome plated regulating wheel slide is dovetail ground for longevity, yet smooth due to our use of Turcite for gibs.

Work Wheel Dressing Options

Work Wheel Dressing Options

To shape the grinding wheel, the machine has the ability to become a work wheel dresser allowing the operator to manually dress the grinding wheel on the machine. Also, if you wish to automate this process, we offer two other options. The DM-9B Dresser (offline system used to dress the grinding wheel), or the more advanced DM-9CNC (a CNC programmable wheel dressing machine that can be operated using our simple touch screen control).

Intuitive HMI Controls

Intuitive HMI Controls

The control software is entirely developed at Glebar and is fully customizable to address your application and process. The intuitive touch screen interface allows for ease of use and flexibility. The machine software interface was developed to allow an unskilled operator to run many high precision machines simultaneously.

Remote Connectivity

Remote Connectivity

Remote connectivity simplifies troubleshooting and maintenance.

Automation and Accessories

Automation and Accessories

A variety of feeding systems are available for rod or ball feeding from the top or side of the machine, from semi-automated systems for testing and small production runs all the way up to stainless-steel hoppers that can hold thousands of balls. Custom solutions tailored to specialty applications are also available.

Key Features

  • Small footprint
  • High power
  • Simple operation
  • Many feeder options
  • Quick grinding wheel replacement.
  • Built to last

Specifications

  • Grinding Diameter Capacity : Min 0.002" (0.05mm), Max 4" (100mm)
  • Roundness : 0.0002" (5µm)
  • Work Wheel Diameter : 9" (229mm)
  • Work Wheel Power : 7.5HP (5.6kW), 10HP (7.5kW), or 15HP (11kW)
  • Work Wheel RPM : 2375
  • Work Wheel Length : 10-1/8" (257mm)
  • Regulating Wheel Power : 2HP (1.45kw)
  • Regulating Wheel RPM : 10 - 400
  • Machine Footprint : 47”x39”x50” (119x99x127cm)
  • Machine Weight : 2000 lbs.
  • Grinding Length : MAX 10" (254mm)
  • Resolution : 0.1µm (0.000004”)
  • Hydraulic Pump Motor Power : 2HP (1.5kW)



Accessories

Ball Feeder

Ball Feeder

Designed for feeding balls from a hopper assembly, channeling them into singular stations on the plunge grinder.

Contour Work Wheel Dressing Attachment with Storage Box

Contour Work Wheel Dressing Attachment with Storage Box

Includes dresser head assembly, Stylus checking system, slide assembly and platen which mounts on the back of the machine. This system enables the user to dress the grinding wheel while still mounted on the machine.

Mist Collector

Mist Collector

Collects and removes debri and dust from the work area.

Off-machine Wheel Balancing System

Off-machine Wheel Balancing System

Comes with arbor, flange with four weights and stand. Balanced grinding wheels are critical for high precision parts.

Post Process Gauging

Post Process Gauging

Post grinding and cleaning, the data is collected, analyzed and fed back to the machine for automatic size compensation. Measurements are shown on a trend graph on the machine control.

Part Counter

Part Counter

Built specific for the part; integrated into the cell.

Pressure Washing System

Pressure Washing System

Post grinding, system is integrated into the cell to pressure clean parts.

Programmable Side Feeder

Programmable Side Feeder

Both Z and X axis of feeder have velocity and position control set on the machine touch screen.

Robot Pick & Place

Robot Pick & Place

Automatically picks parts from trays, loads into machine, unloads and places back to parts tray. Fully guarded and interlocked access doors. Robot arm incorporates two grippers for staging the loading and unloading during the grind cycle, reducing idle time.

Straight-line Regulating Wheel Dresser

Straight-line Regulating Wheel Dresser

Available in manual and hydraulic version.

Three-Stage Recirculating Coolant System

Three-Stage Recirculating Coolant System

30 gallon capacity with two removable settling tanks centrifugal pump & filtration package

Select Components Ground on a Glebar PG-9DHD

Below is a sample of select components Glebar has ground, on this machine, over the years. Please contact us and send us your drawing for a personal consultation.

Bowling Balls
Catalytic Converters
Cedar Balls
Check Valve
Composite Spindles and Rods
Contact Lens Blanks

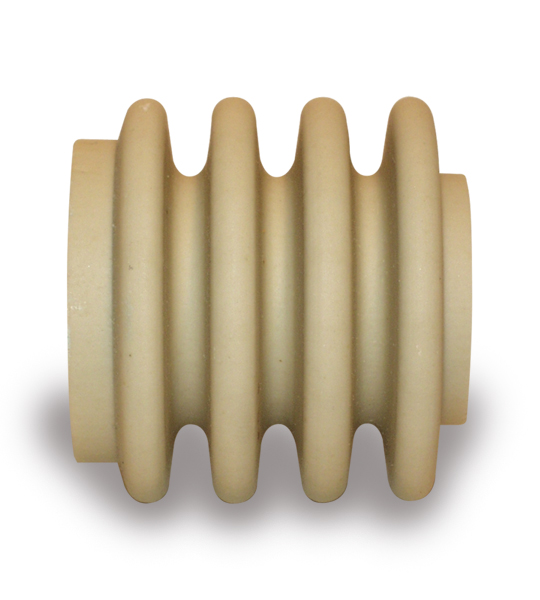

Cryogenic Insulators
Curtain Rod Fineals
Deodorant Balls
Drum Sticks
Felt Pen Tips
Frac Balls
Fuse Bodies
Golf Ball Cores
Golf Shafts
High-Performance Polymid Rod
O Rings
Plastic Spindles
Rubber Balls
Rubber Rollers
Screw Driver Handles
Silicon Nitride Balls
Welding Rods
Zirconium Balls
