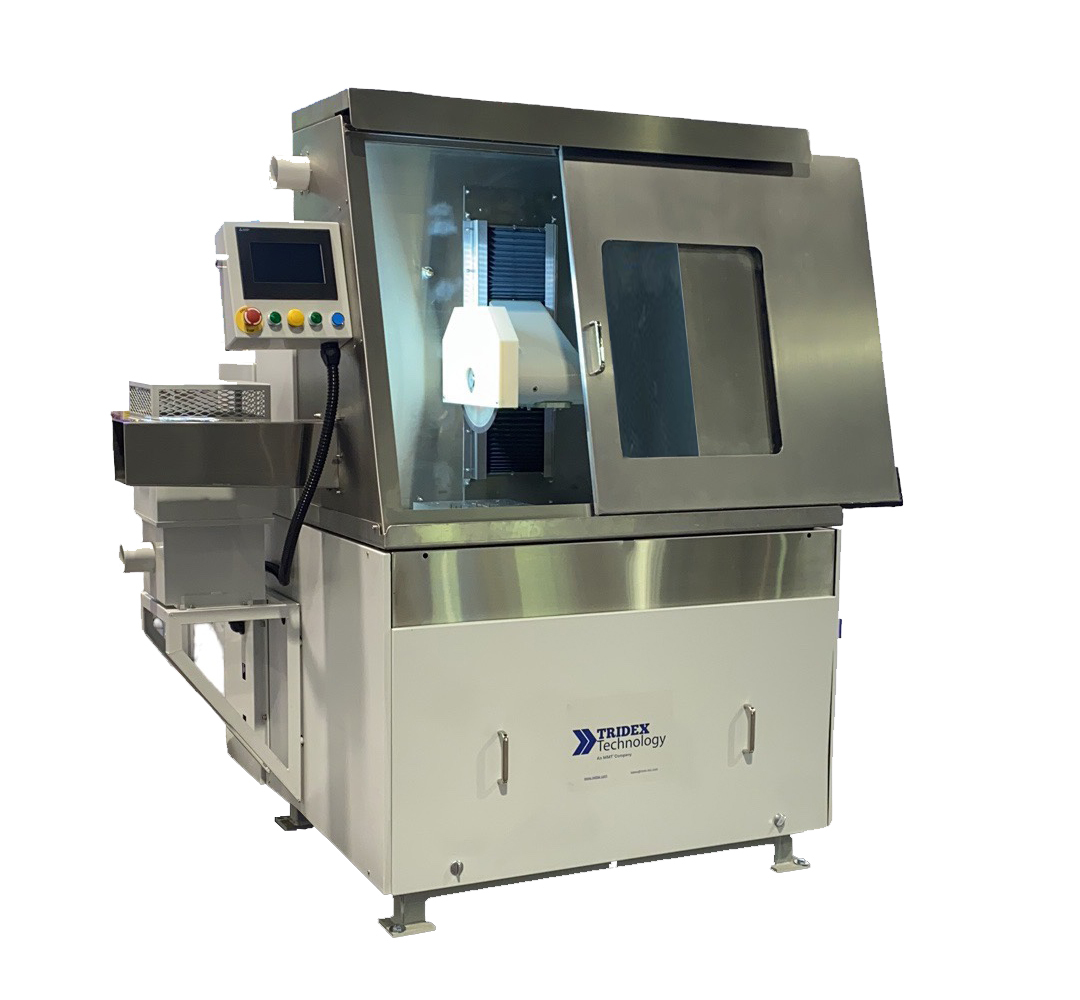

MCS-12 Single Axis Electrochemical Cutoff Machine

The Glebar Advantage

The Tridex MCS-12 Single Axis Burr Free Electrochemical (ECG) Cutoff Machine features completely burr-free cutting, virtually eliminating the need for deburring or other corrective secondary operations and reducing scrap. Almost all metals can be cut burr-free with ECG making it an attractive option for cutting medical, aerospace, UHP gas delivery, and chromatography tubing. The MCS-12 is ideal for trim cuts after bending and excels at producing burr-free cuts for small batches.

Touchscreen HMI Touchscreen HMI
Safety Enclosure Safety Enclosure
ECG ECG
Burr Free Burr Free
MCS-12 Single Axis Electrochemical Cutoff Machine

Related Machines

CS1-A

Cutoff, Precision Abrasive and ECG



View Details >

CS1-E

Cutoff, Precision Abrasive and ECG



View Details >

CS1-EA

Cutoff, Precision Abrasive and ECG



View Details >

Key Features

  • Compact, robust design for superior tolerance and finish.
  • Completely burr-free cuts virtually eliminate the need for deburring and other secondary operations.
  • Fast, precise cuts.
  • Easy setup and operation using color touchscreen HMI.
  • Precision linear guide for cutting head axis - no pivot.
  • Servo drive ballscrew head motion for accurate repeatable cuts.
  • Direct drive spindle motor, no drive belt.
  • Standard variable speed spindle.
  • Standard canister electrolyte filter.
  • Standard flow control valve to regulate electrolyte flow.
  • All stainless construction including full access stainless splash guard and electrolyte tank.
  • All slide components are protected from electrolyte and grit.
  • No mechanical adjustments needed.

Specifications

  • Machine Footprint : 68" x 55" x 75"
  • Control : Operator pendant color touchscreen
  • Safety Standards : CE and ISO-13849.1
  • Power Supply : 460V, 3Ph, 60Hz Standard. 380V, 50Hz Optional
  • Electrolyte Supply Tank : 10 Gallon (37 LIter) Stainless Steel

Case Studies coming soon.Please contact us and send us your drawing for a personal consultation.
