GPL-501B: Gas Pressure Leak Tester

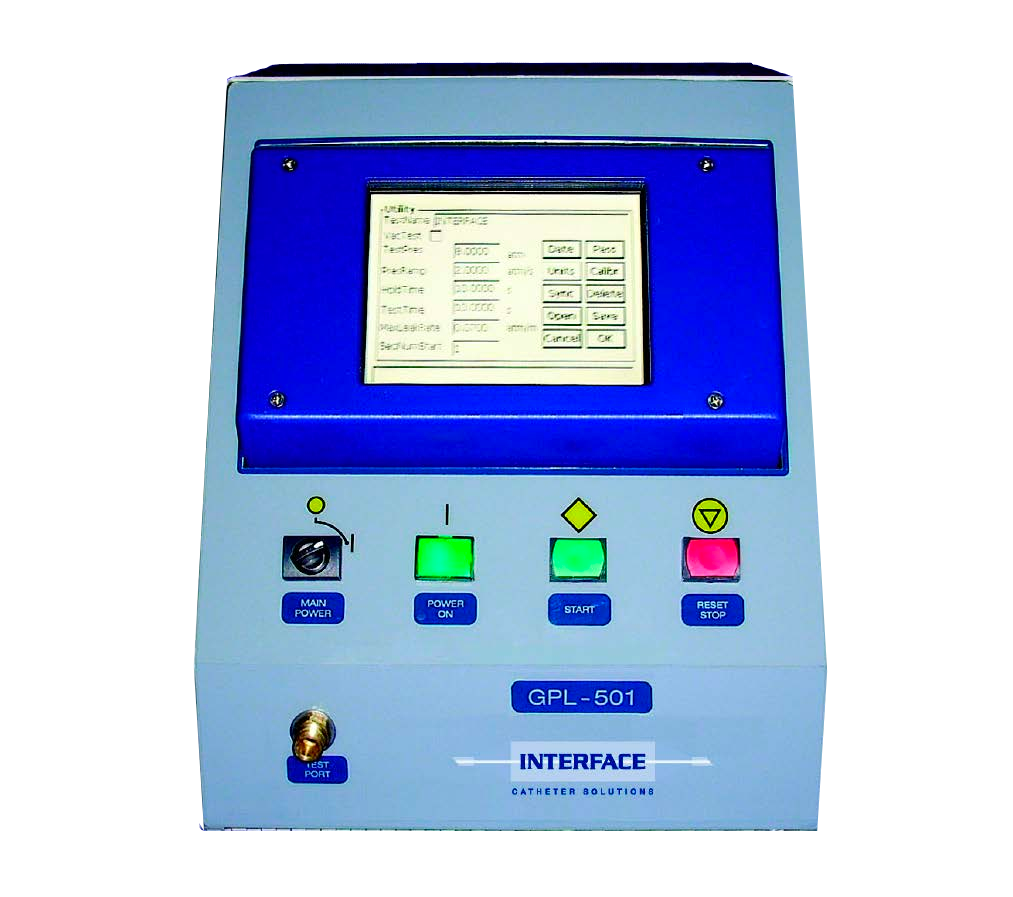

The Confluent Medical Technologies gas pressure leak tester, model GPL-501, is a tabletop machine used for nondestructive leak testing of catheter components using dry nitrogen gas. Nitrogen gas is inert so there is no residue, water spots or water droplets on catheter components, making it ideal for testing of finished devices.
Parameters Include
- Vacuum test
- Ramp rate
- Test time
- Test pressure
- Hold time
- Maximum leak rate
Specifications
Dimensions: | 10” W x 12.5” H x 12” D 25 cm W x 32 cm H x 31 cm D |
Weight: | 20 lbs / 9 kg |
Electrical Power: | 110-220 VAC 50-60 Hz, up to 500 Watts |
Input Pressure: | 500-550 psi nitrogen |
Output Test Pressure Connector: | Compression fitting |
Output Test Pressure Range: – Pressure Test: – Vacuum Test: | 1 – 500 psi -0.1 – -0.8 atm |
Pressure Accuracy: | ±0.5% of full scale |
Pressure Resolution: | 0.03 psi |
Data Output: | Date, Time, Test Results, Lot and Part Numbers |
Storable Test Profiles: | Up to 50 |
Accessory Items: | Balloon compliance fixture Compact thermal printer Rollaway catheter stand |
