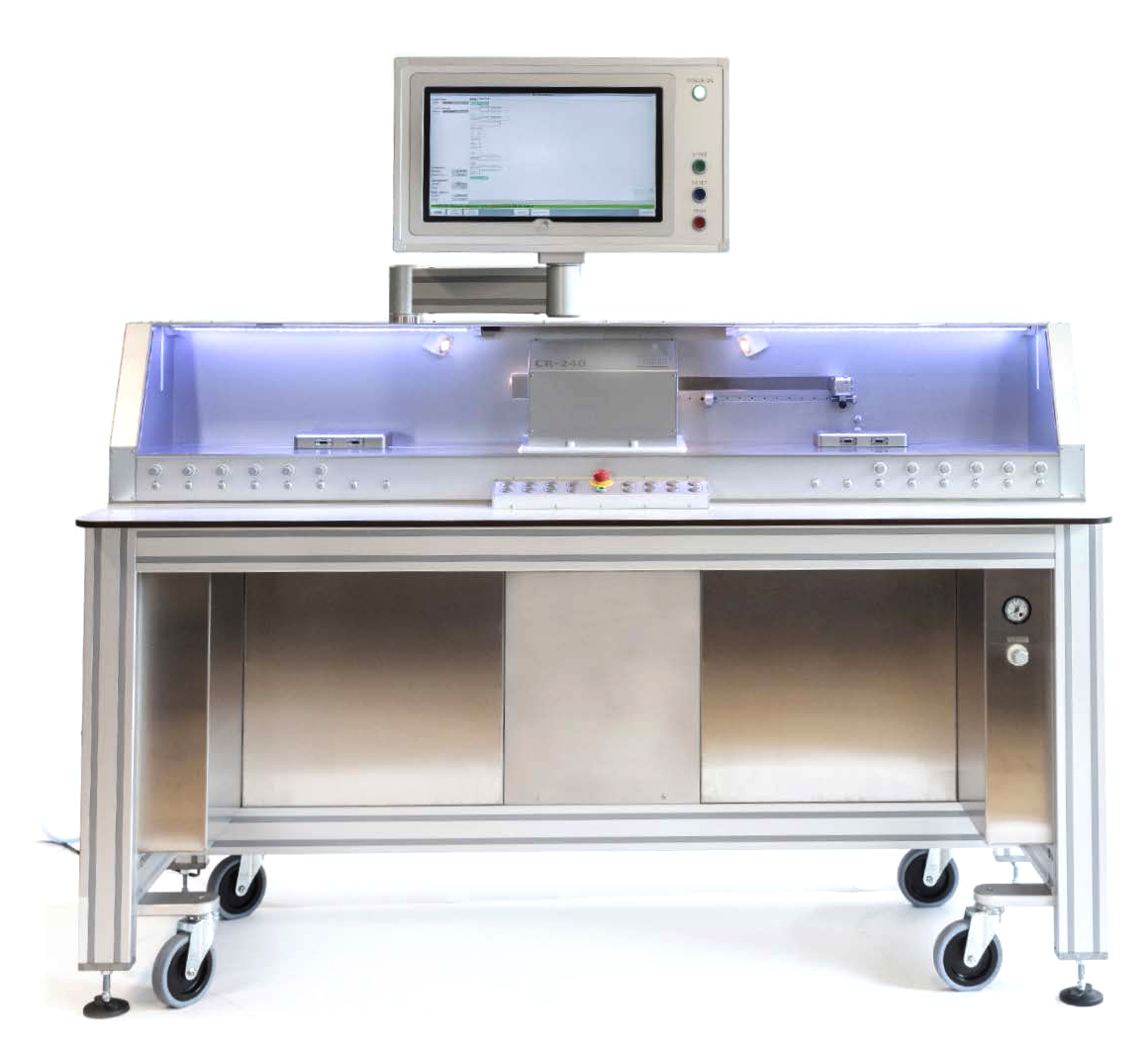

CR-240-FSCP

Description

The CR-240-FSCP Flexible Stent Crimping Platform is developed for the crimping and transfer on or into the delivery system. Both balloon expandable and self- expandable stents up to 220 mm length can be handled.

Specifications

  • Flexible Process Interface
  • Servo controlled stent crimping head with Zero Gap
    technology
  • Quick exchangeable crimping head
  • 2 platforms for customized parts on holding and pushing
    stents and mandrels
  • The CR-240-FSCP is built with a very high-quality benchmark
    resulting in a stable and robust design with minimal cost of
    ownership.
  • The CR-240-FSCP stent crimper can be easily calibrated using
    the one-point automatic diameter calibration function built into
    the system. Calibration in seconds.
  • Large 19” full color touch screen user interface for easy overview
    of the machine behavior and managing of the FPI

Technical Specs

Stent crimping length

240 mm quick exchange crimphead

Stent type

All stent types (except DES)

Maximum diameter

36 mm (optionally larger sizes possible)

Heating / Cooling

Optional to -20C / +90C

Minimum closing diameter

0.1 mm (software limit)

Crimp head control

Servo controlled position / force

Diameter accuracy

+/- 0.02 mm @ 100 N

Maximum crimp force

1250 N radial. Dynamic Diameter Compensation (DDC)

Crimping speeds

0.1 mm/s – 10 mm/s

Maximum transfer force

+/- 500 N with loadcell measurement

Platform connections

8x air connection (6 mono stable valves and 2 servo valves)+ 3x input (24VDC) + 3x output (24VDC)

GUI

19” colour touch panel

Control software

Flexible Process Interface (FPI) software for your own cycle development. (This MPT Europe BV designed software is also used on the BFM series balloon forming machines)

Real time graphs with zoom options:

  • platform force left
  • platform force right
  • crimphead diameter
  • crimphead force

Ethernet

2x

USB

4x

Required air pressure

7 bar minimum

Power supply

115 / 240 VAC / 0.5 kW

Safety systems

Light curtain with intuitive operator feedback system
