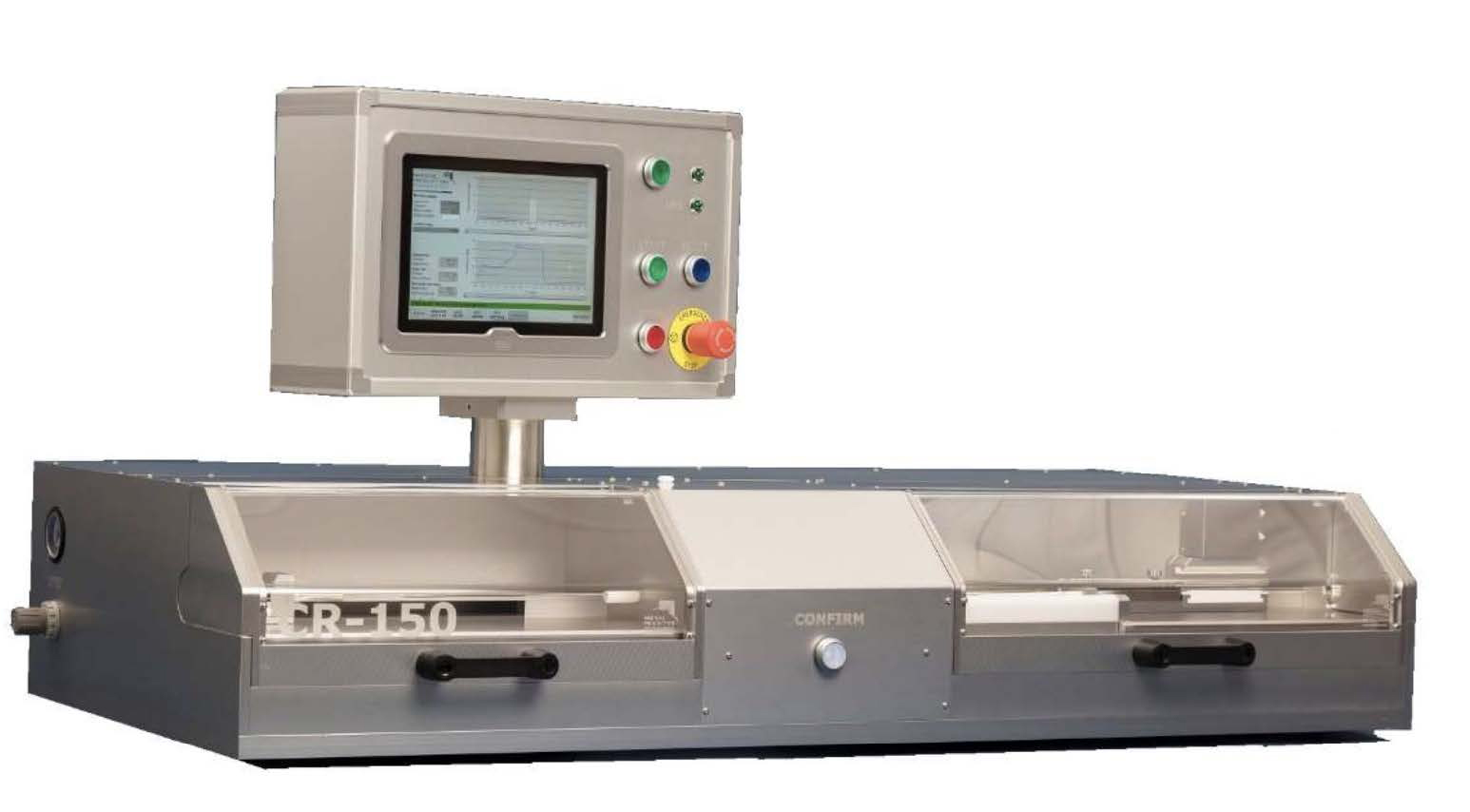

CR-150

Description

The CR-150 Stent Crimping Machine is developed for the crimping and transfer into the delivery system of self-expandable stents up to 120 mm length with a maximum diameter of approx. 20 mm.

Specifications

  • Automatic stent loading with cradle system
  • Servo controlled stent crimping head with Zero Gap technology
  • Exchangeable pusher rods and delivery system holders for various stent diameters
  • 10” user interface with recipe control
  • The CR-150 is built with a very high-quality benchmark resulting in a stable and robust design with minimal cost of ownership.
  • CR-150 stent crimper can be easily calibrated using the one-point automatic diameter calibration function built into the system. Calibration in seconds.
  • Full process data logging to the internal PC system and transfer possibly to external USB for registration or analysis.

Technical Specs

Stent crimping length

150 mm head. Maximum 120 mm length stents

Stent type

Self-expandable stents (also for covered stents)

Maximum diameter auto loading

20 mm (optionally larger sizes possible)

Maximum opening crimp head

35 mm

Minimum closing diameter

0.1 mm (software limit)

Crimp head control

Servo controlled position / force

Diameter accuracy

+/- 0.02 mm @ 100 N

Maximum crimp force

1000 N radial. Dynamic Diameter Compensation possible

Crimping speeds

0.1 mm/s – 10 mm/s

Maximum transfer force

200 N with loadcell measurement on the pusher

Stent positioning

Fully automatic with stent cradle system

GUI

10” colour touch panel

Control software

Zoomable process graphs

Recipe based

Password levels (operator, engineer, calibrator)

Remote support option

Data logging with USB transfer possibility

Ethernet

2x

USB

4x

Required air pressure

7 bar minimum

Power supply

115 / 240 VAC / 0.5 kW

UPS

Optional power supply backup to finish current cycle

Safety systems

Covers with coded magnets and safety PLC system
