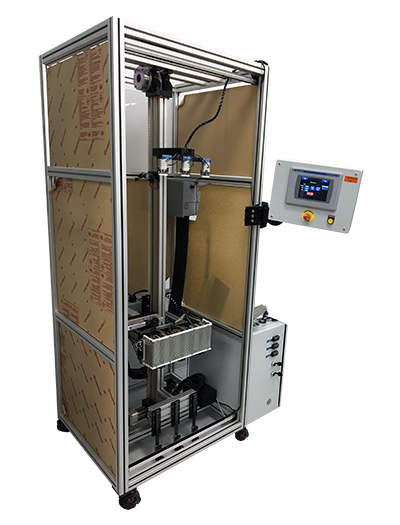

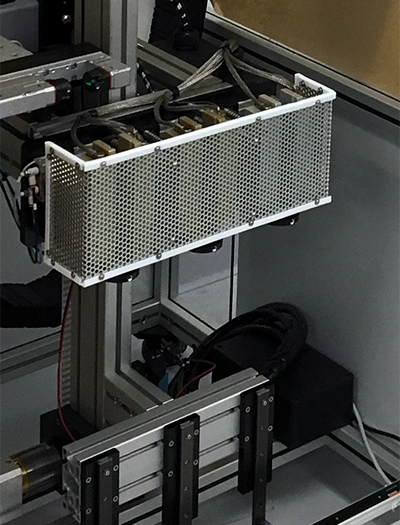

Liner Stretcher

Description

The CATH-TECH™  Liner Stretcher uses a combination of heat and tension to process a liner to a fixed mandrel. This automated process eliminates the need for the operator to hand stretch a liner.



Our CATH-TECH Liner Stretcher and its process allow the liner to sit tight against the mandrel with minimal relaxation. Because of the fine machine control combined with the process, throughput is increased, scraped units are decreased, and Etching issues (“white liner”) are diminished. This process also eliminates operator safety and health issues related to carpal tunnel syndrome.

Key Features

  • Program up-to 20 configurations, on a standard unit

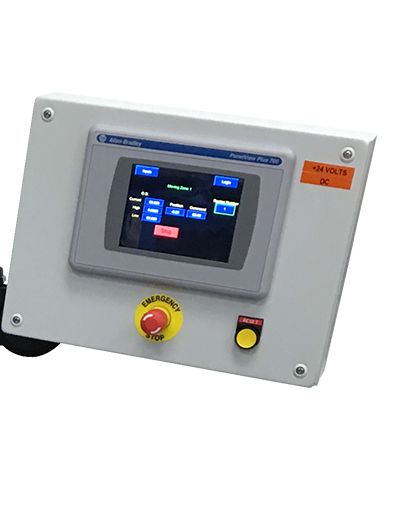

  • Easy-to-use HMI operator interface
  • Integrated temperature controllers
  • Dead weight system implementation
  • Machine height adjustable (upon request)
  • 208-240 vac. single or three phase power
  • System processes can be configured for different liner and mandrel set-ups

Universal Specifications

  • Shipping Weight: 900-1400 lbs (408-635 kg)
  • Machine Weight: 500-1000 lbs (226-454 kg)
  • Height: 103-120” (2616-3048103 mm)
  • Width: 60” (1524 mm)
  • Depth: 38” (965 mm)
  • Temperature Accuracy: (+/-) 2° F (2.78 C°)
  • Air Pressure: 80 psi minimum
  • Product Diameter: .020 up-to 0.375”
  • Product Capacity: 6-12 units (dependent on design)
  • Heater Travel Speed: 0.1 mm/sec -10cm/sec
  • Single Run Product Capacity: Repeat
  • General Warranty: 1 year
