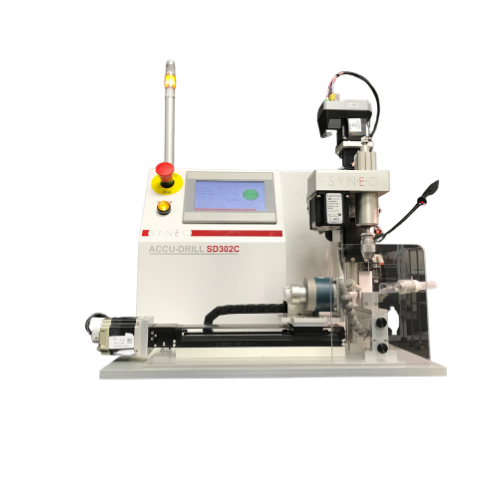

Accu-Drill SD
The Accu-Drill SD Automated Hole Driller is a powerful, safe solution for catheter hole drilling and skiving patterns requiring one to four axes of control. The automatic hole-plug ejector pin system and coordinated hole-plug blow off and vacuum collection system cleanly remove scrap material. With full-color LCD touchscreen HMI, pattern memory, and adjustable feed and speed controls, achieve total control and uncompromising precision. Paired with our powerful SYNEO cutting tools, realize unmatched hole quality.
Key Features
- Industry’s fastest and most reliable machines for quality catheter holes and skives
- Full-color LCD touchscreen HMI with pattern memory systems
- Easy cutting tool and catheter guide changes
- Efficient control and collection of hole plugs and skive debris
- Configurable for any type of catheter requirement
- Spindle speed: 0 – 4,000rpm
- Drill depth setting resolution: .001” (.025mm)
- Drill Chuck Run-out: .002” (.05mm) TIR
- Drill chuck: .125” (3.17mm) diameter
- Power: 110 VAC at 50/60Hz
- Air: 30-120psi
Commonly Used Materials
- Teflon® PTFE
- Teflon® FAP
- Silicone
- Polyimide
- Pebax®
- PEEK
- Polyurethane
- PVC (vinyl)
- TPE
- PET
- Polycarbonate
- Acrylic
- Polyethylene
- Latex and natural rubber
- Nylon 6 and small diameter nylon 12
