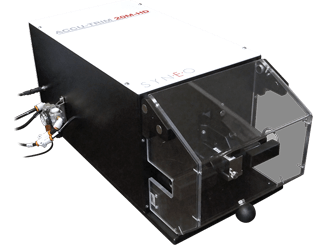

Accu-Cut 20M & 20MHD

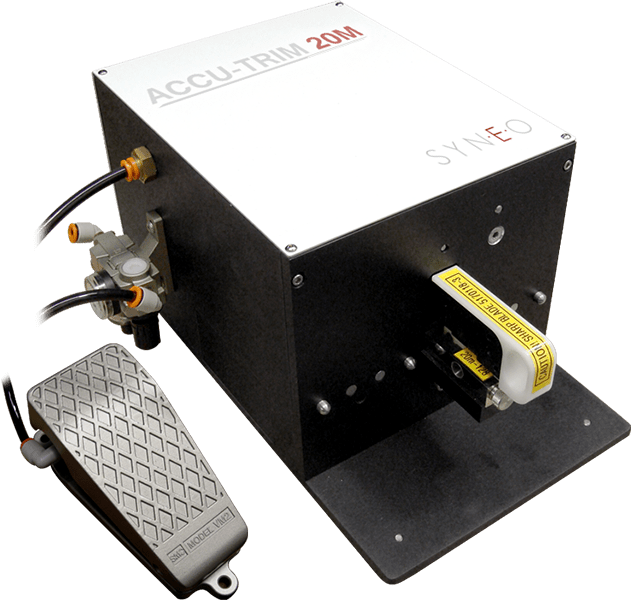

The Manual Medical Tubing Cutters trim rough-cut assemblies to precise lengths with square, burr-free cuts. They bring safe, ergonomic cutting to lower volume production and R&D areas. The 20M, a manual medical tubing trimmer, can include a custom fixture to reference a cut from any feature on the part and is available with hand or air actuation using a footswitch (air actuation recommended for heavier materials).

Key Features

  • Low cost entry-level solution tailored towards R&D and low volume production. Ideal for evaluating trim capabilities with superior cut quality.
  • Optional Adjustable hard-stop for repeatable trimming.
  • This manual pneumatic tube cutting machine has optional pneumatic cutting actuation with foot switch activation.
  • Quick change snap-in tooling for fast changeovers.

Specifications

  • Power: Manually-operated; pneumatic optional
  • Air requirements: 70-100 PSI optional
  • Dimensions (W x D x H): 15″ x 20″ x 14″
  • Weight (standard machine): 10 lbs.
  • CE certified model available

Commonly Used Materials

  • Teflon® PTFE
  • Teflon® FAP
  • silicone
  • polyimide
  • Pebax®
  • PEEK
  • polyurethane
  • PVC (vinyl)
  • latex and natural rubber
  • TPE
  • PET
  • polycarbonate
  • polyethylene
  • nylon 6 and small diameter nylon 12
  • Delrin® (acetal)
  • polypropylene
  • optical fiber
  • natural suture
  • synthetic suture (polyglycolide)
  • small diameter glass fiber
  • lead and silver bearing solder
